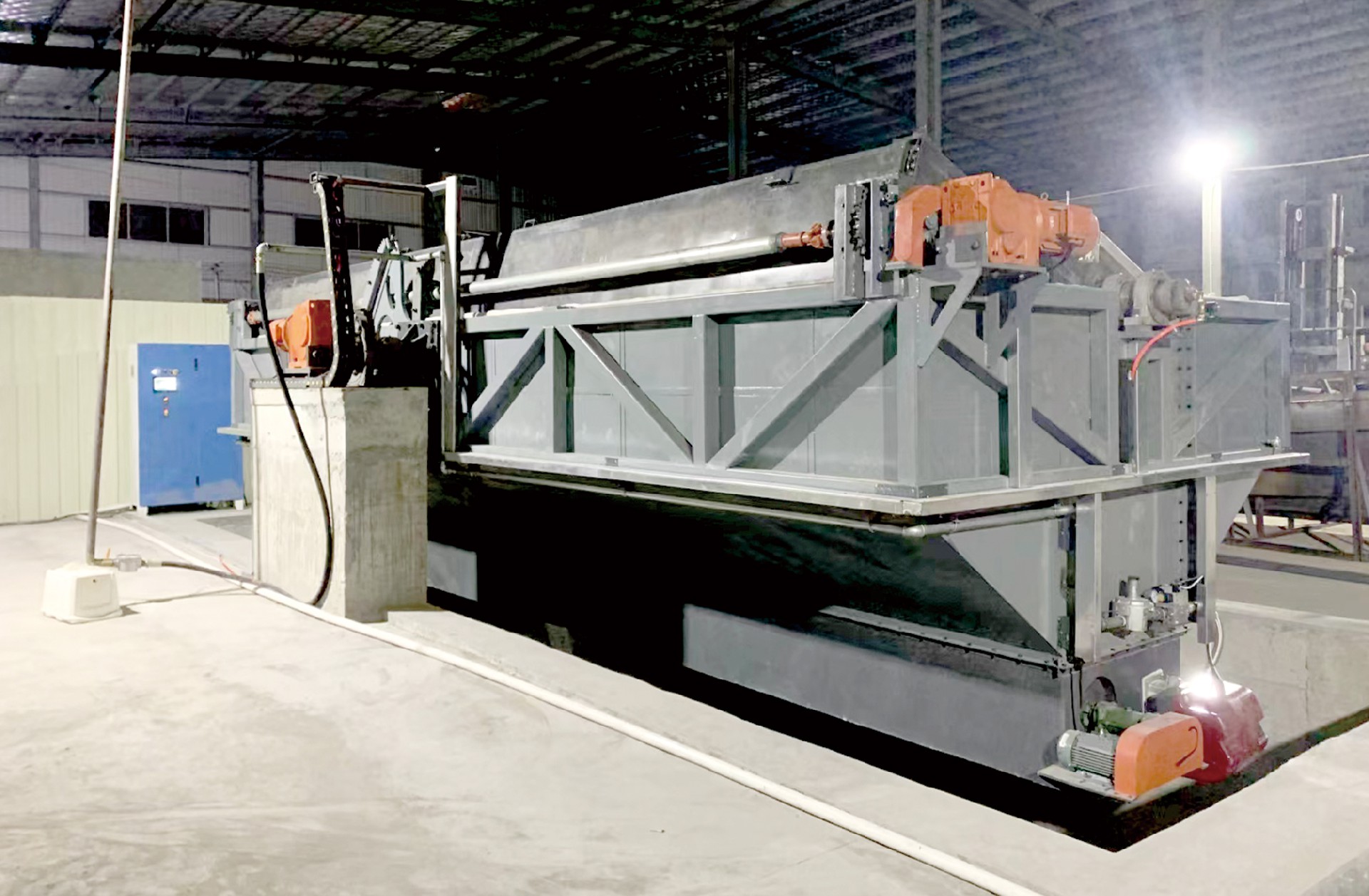

Oven swing rotational molding machine

Product Description

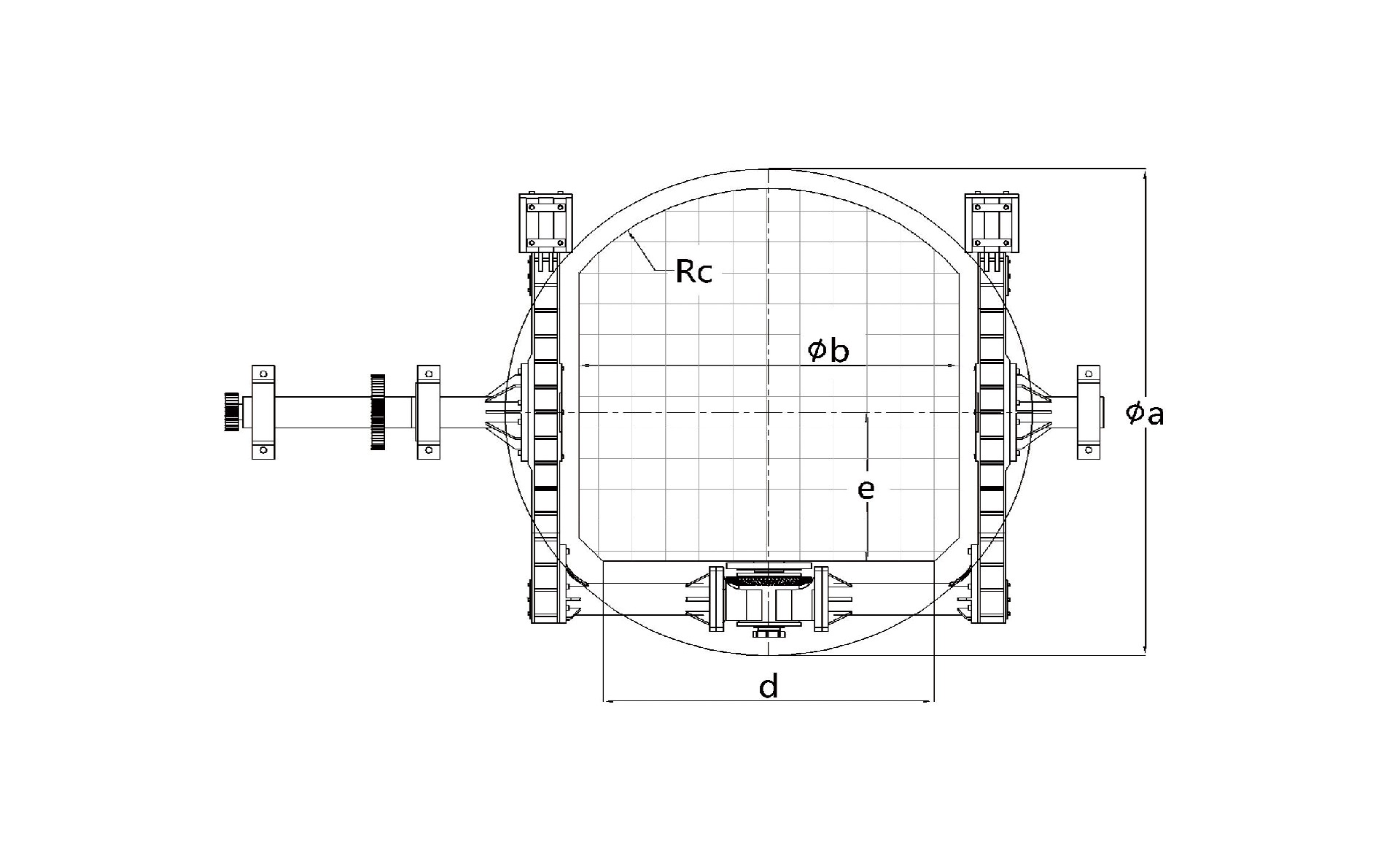

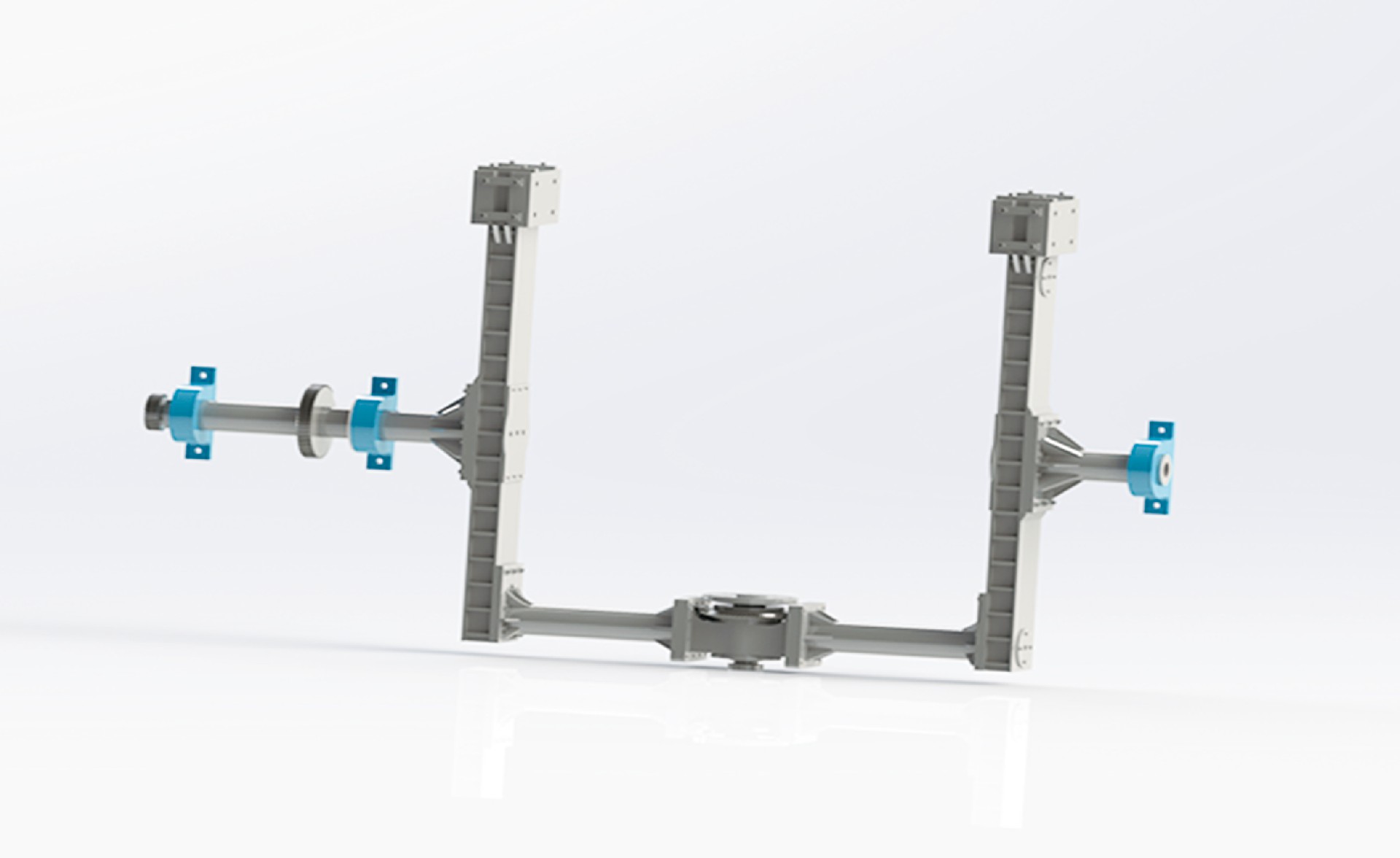

The oven swing type rolling molding machine, also known as the boat rolling molding machine, is a rolling molding machine developed according to the requirements of special rolling molding products. The door opening and closing of this machine is driven by a motor rack along an arc, which has the advantages of easy opening, large door opening angle, and not easily damaged; This machine abandons the traditional swing machine and achieves swing through connecting rod motor transmission and hydraulic transmission. The connecting rod transmission is unstable and easily damaged, and the hydraulic cylinder is difficult to maintain. This machine adopts a motor-driven rack to achieve swinging, which has the advantages of adjustable angle, smooth transmission, and easy maintenance; Equipped with replaceable frame arms and cooling frames, the cooling is carried out on an external cooling frame, which does not affect the next furnace processing.

Suitable for producing thick, large, and extra large slender hollow rotational molding products, such as kayaks, ships, and ultra long missile boxes.

Model:RC-HX-5000、RC-HX-6000、RC-HX-7000、RC-HX-8000、CUSTOMIZED

Equipment features:

The unit occupies a small area and is energy-saving and environmentally friendly;

Having truly meaningful wireless communication technology reduces the failure rate of broken wires to zero;

Real time monitoring of heating chamber temperature ensures product quality;

Humanized touch interface, easy to operate;

Process flow storage function, convenient for future production management;

Remote fault diagnosis and implementation of mobile cloud monitoring screen;

Available heat sources: liquefied gas, natural gas, etc.
